Page Editor

FiestaBoard's WYSIWYG page editor lets you create and edit board display pages with a visual editor that shows exactly how content will appear on your split-flap display.

Overview​

The page editor is the core of FiestaBoard's content creation experience. It provides a real-time preview of your board layout, template variable insertion, and color formatting—all in a visual interface.

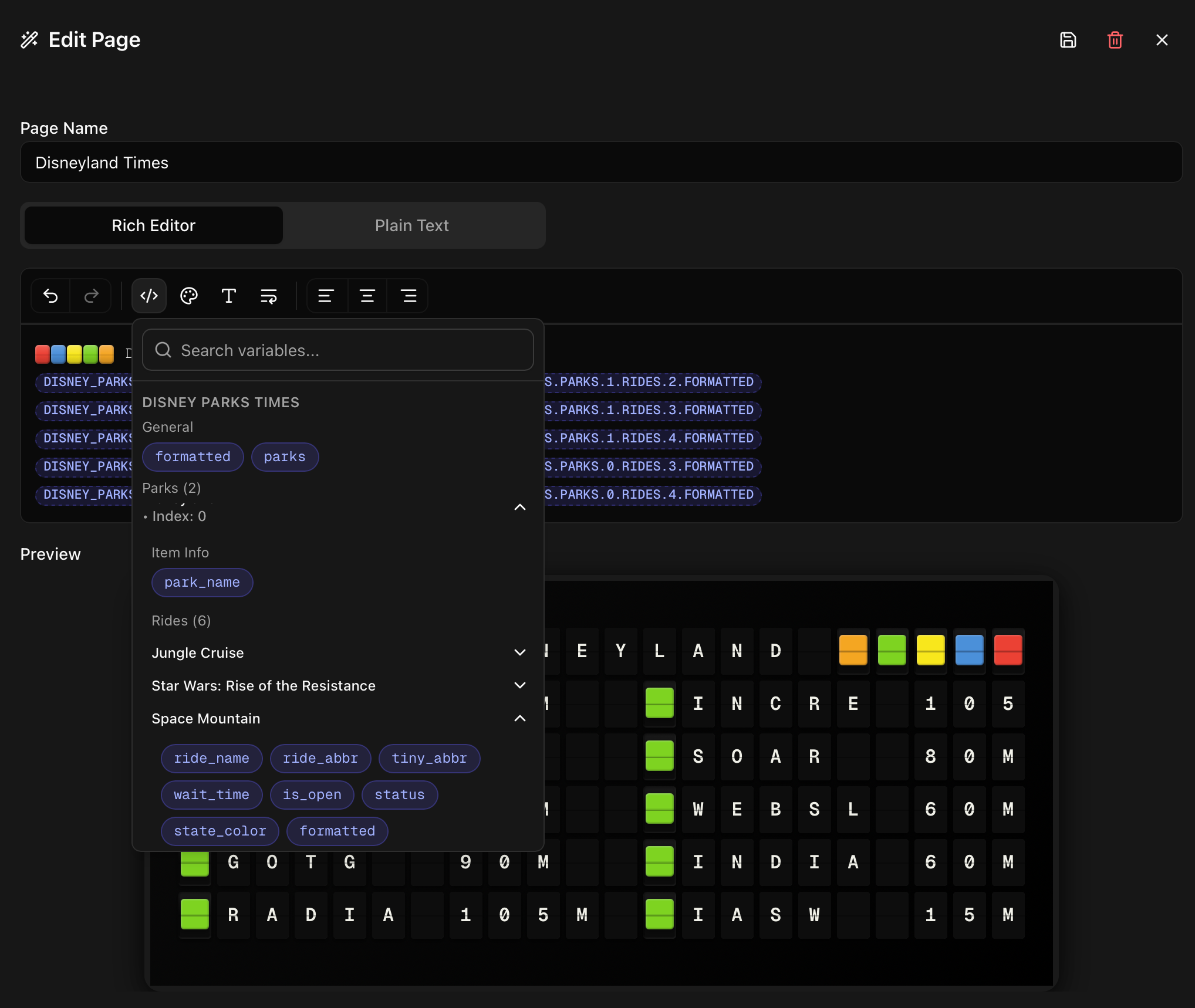

Page Editor

Creating a New Page​

  1. Open the FiestaBoard Web UI at http://localhost:8080
  2. Navigate to the Pages section
  3. Click New Page
  4. Give your page a name
  5. Use the editor to compose your content
  6. Click Save

Using Template Variables​

Template variables let you insert live data from your enabled plugins into any page. Variables are automatically replaced with real-time data when the page is displayed.

Inserting Variables​

  1. In the page editor, click the Variable Picker button
  2. Browse available variables grouped by plugin
  3. Click a variable to insert it at the cursor position

Variable Types​

TypeDescriptionExample
SimpleSingle value replacement{weather.temperature} → 72°F
ArrayMulti-line data{stocks.prices} → formatted stock rows

Example Variables​

Here are some commonly used template variables:

  • {weather.temperature} — Current temperature
  • {weather.conditions} — Weather conditions (Sunny, Cloudy, etc.)
  • {stocks.prices} — Stock price display
  • {date_time.current} — Current date and time
  • {muni.arrivals} — Transit arrival times

Working with Colors​

The split-flap display supports colored tiles using special character codes. You can use these in the editor to add visual emphasis to your pages.

CodeColorCommon Use
{63}🟥 RedAlerts, high temperatures
{64}🟧 OrangeWarm temperatures
{65}🟨 YellowComfortable, warnings
{66}🟩 GreenGood status, success
{67}🟦 BlueCold temperatures, info
{68}🟪 VioletVery cold, accents
{69}⬜ WhiteBackgrounds
{70}⬛ BlackBackgrounds

See the Color Guide for detailed usage examples.

Page Layout​

The board display is a grid of 6 rows × 22 columns (132 characters total). The editor reflects this layout so you can see exactly how your content will be positioned.

Tips for Good Layouts​

  • Keep text concise — You have limited characters per row
  • Use alignment — Center important information for readability
  • Mix data sources — Combine multiple plugin variables on one page
  • Test with preview — Use the live preview to check formatting before saving

Managing Pages​

Editing Existing Pages​

  1. Go to the Pages section
  2. Click on any page to open it in the editor
  3. Make your changes
  4. Click Save

Deleting Pages​

  1. Go to the Pages section
  2. Click the delete option on the page you want to remove
  3. Confirm the deletion
tip

Pages that are referenced in schedules should be updated or removed from the schedule before deleting.
